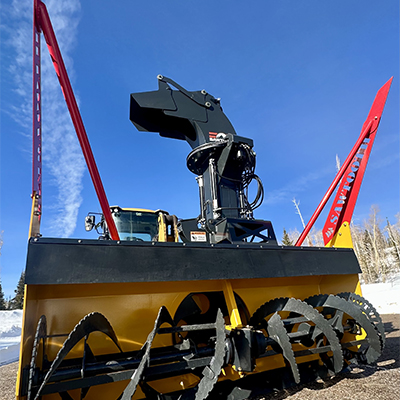

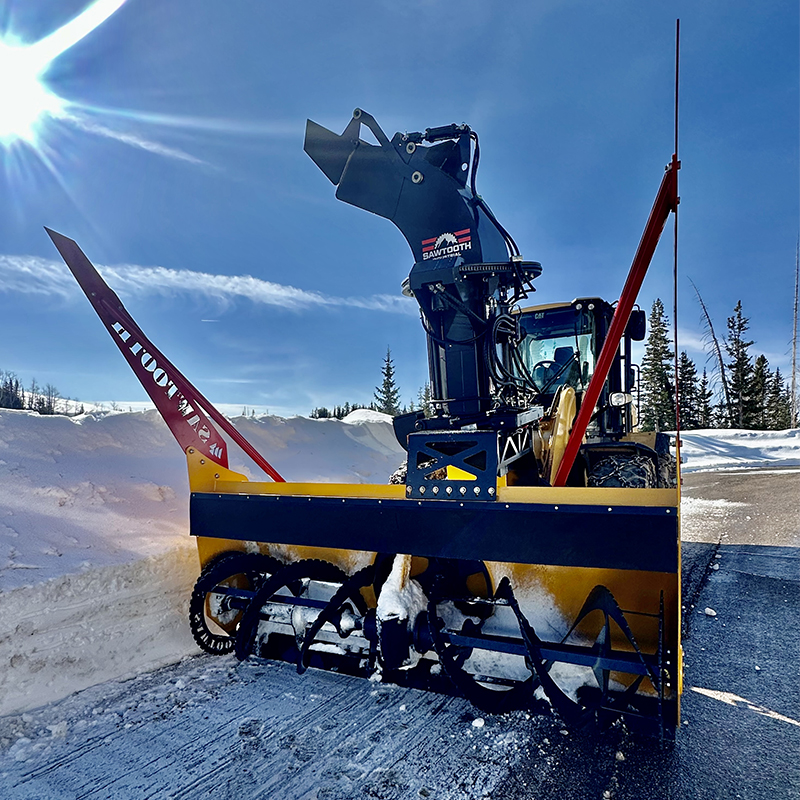

L36H
HYDRAULIC SNOW BLOWER
1,000 Tons per Hour
Download Brochure
GENERAL DATA
Capacity: 1,000 tph
Casing Distance: 100 feet
Two-Stage Blower Design
DIMENSIONS
Blower Head Working Height 45”
Spot Chute Working Height: 134”
Total Weight 7,000 lbs.
Cutting Width: 108” or 120”
Transport Height with Chute Folded: 75”
FRAME
Quick Coupler to Match Loader
SPOT CHUTE
Telescopic Truck Loading Chute
250-Degree Rotation
Top Adjustable Flapper
Side Removable Panels for Cleanout
Spot Chute Folds Over to Assist in Unclogging as Well as Transportation
IMPELLER
Impeller Diameter 36 Inches, Depth 16”
Impeller Casing: 3/8”
Housing Rotation by Hydraulic Cylinder: 135° Rotation

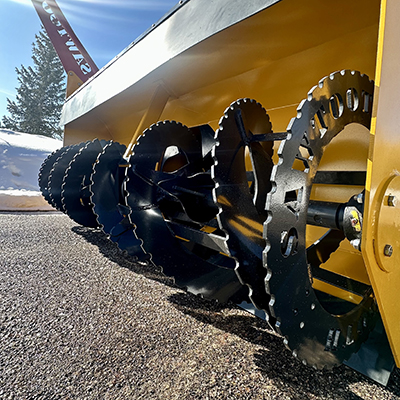

RIBBON TYPE
First Stage Helical Ribbon 30” Diameter: One Left & One Right Assembly, Bolted to Spokes
Ribbons Serrated For Ice Cutting
HYDRAULIC SYSTEM
Heavy-Duty Hydraulic Valving
All Functions Controlled Through One Valve Manifold
Full Flow from Loader to Blower Head
Auxiliary Functions Controlled Via On-Demand Priority Control
Variable Speed Motor Equipped with Relief Valves, Case Drain and Manual Displacement Adjustment for Varying Snow Conditions
Adjustable Valves for Auxiliary Functions
ELECTRICAL SYSTEM
12VDC or 24VDC
Wireless
Handheld Remote for All Functions
POWERTRAIN DRIVE SYSTEM
Hydraulic Drive from the Loader
Designed to Accept the Full Flow and Pressure from the Loader Pump
Variable Speed Hydrostatic Motor with 9 Different Displacement Settings to Optimize Snow Removal in Differing Snow Conditions
Reliefs and Case Drain to Protect the Pump, Motor, and Valving
Right Angle and Center Drive Gearboxes for Power Distribution
Optional Direct Motor Drive to the Ribbons and Fan to Eliminate Gearboxes and Shear Pins
BLADES/SHOES
Replaceable Abrasion Resistant Scraper Blade
Adjustable Replaceable Skid Shoes
Optional Cutter Extensions
PAINT
Paint: Custom Paint Options to Match Customer Preference
Optional Powder Coat for More Durability
Warranty
Read Limited Warranty
