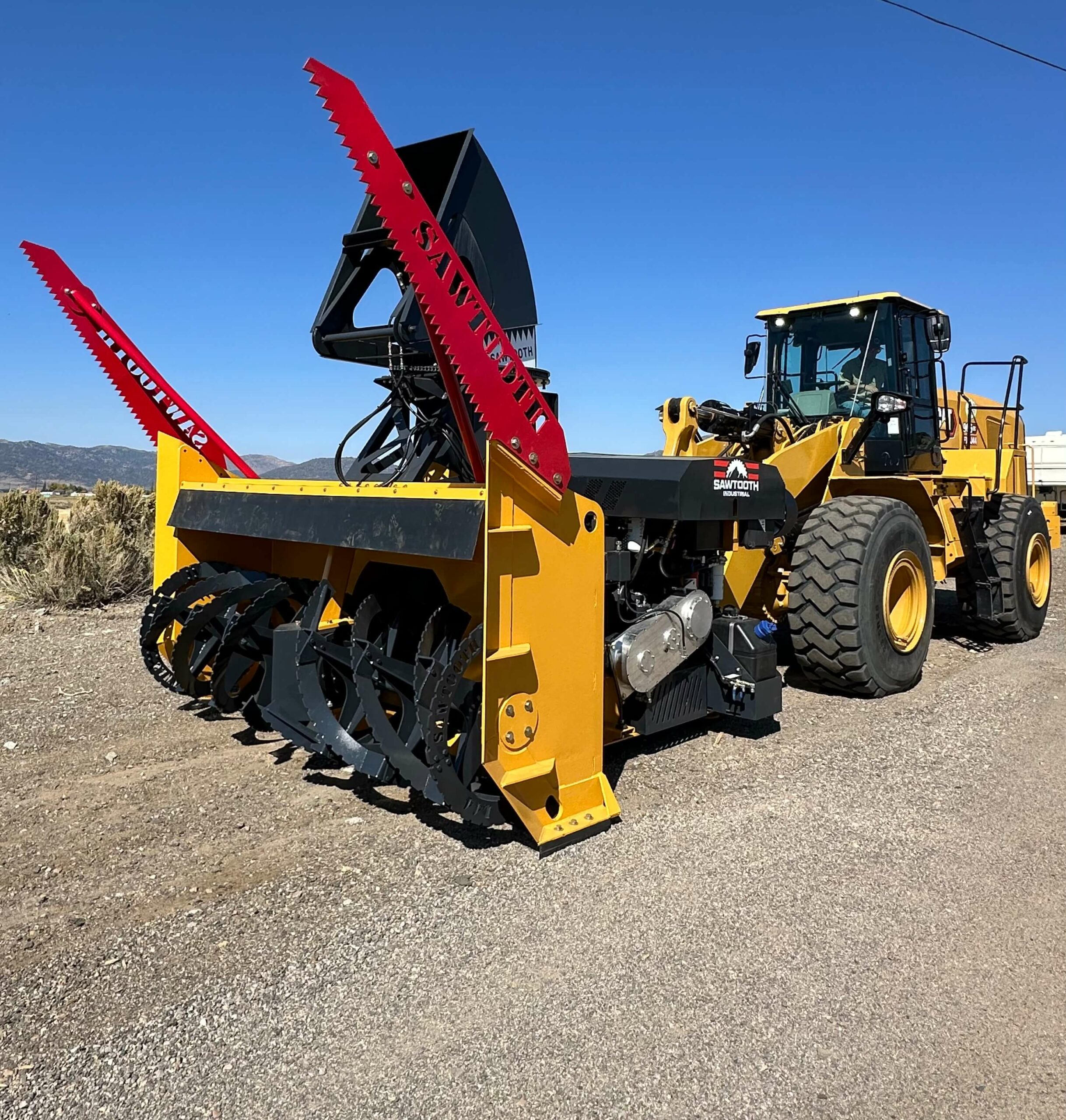

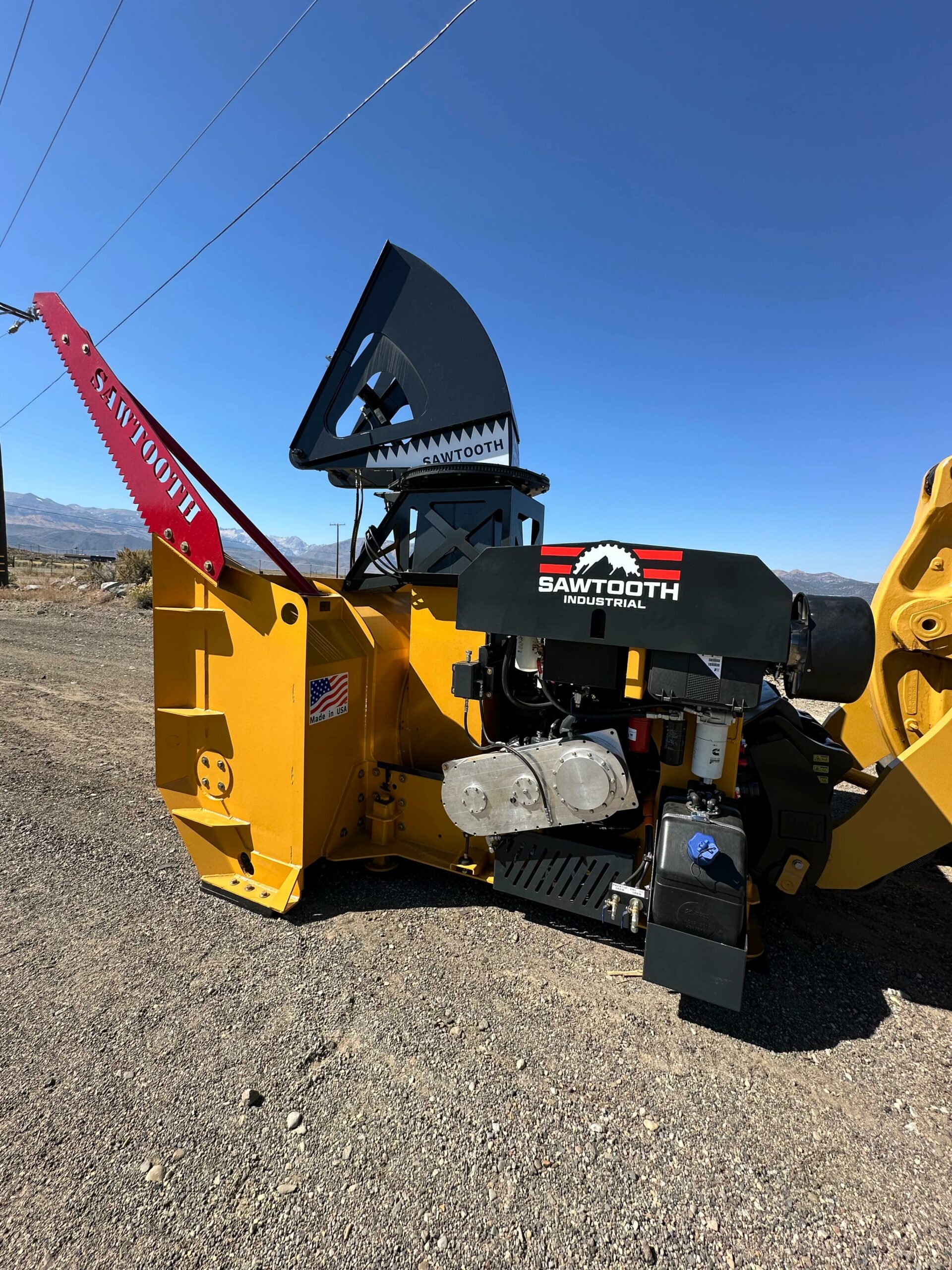

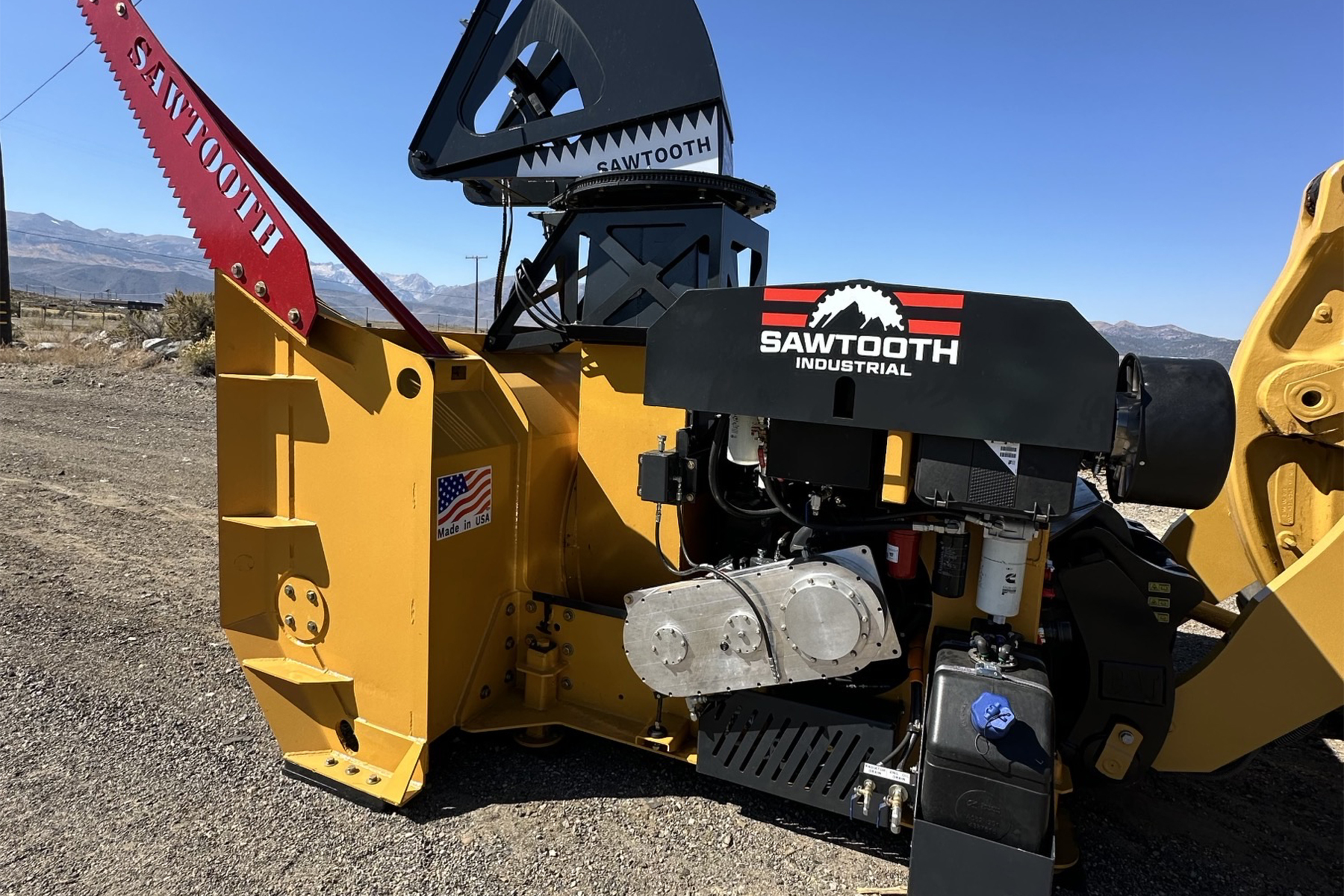

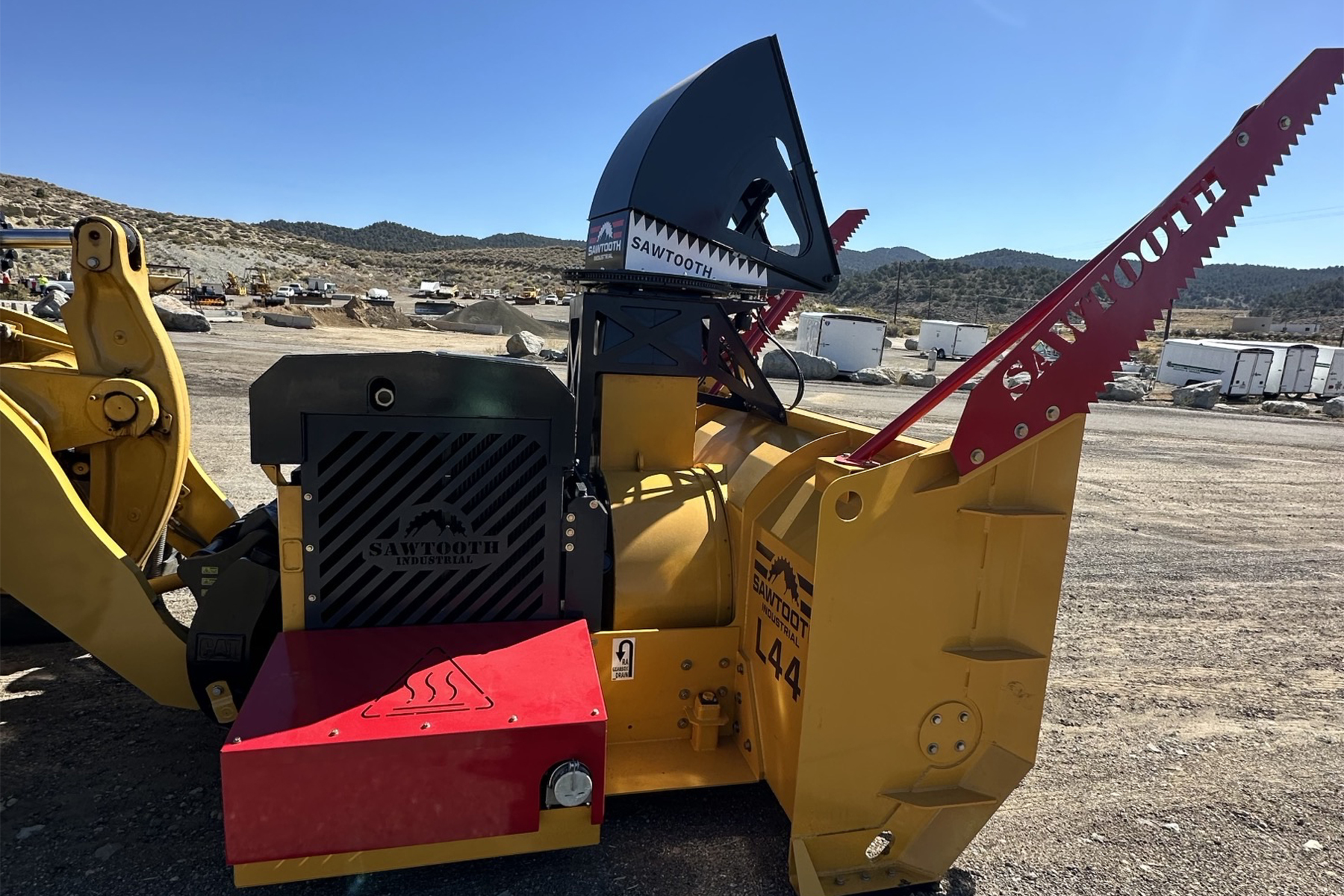

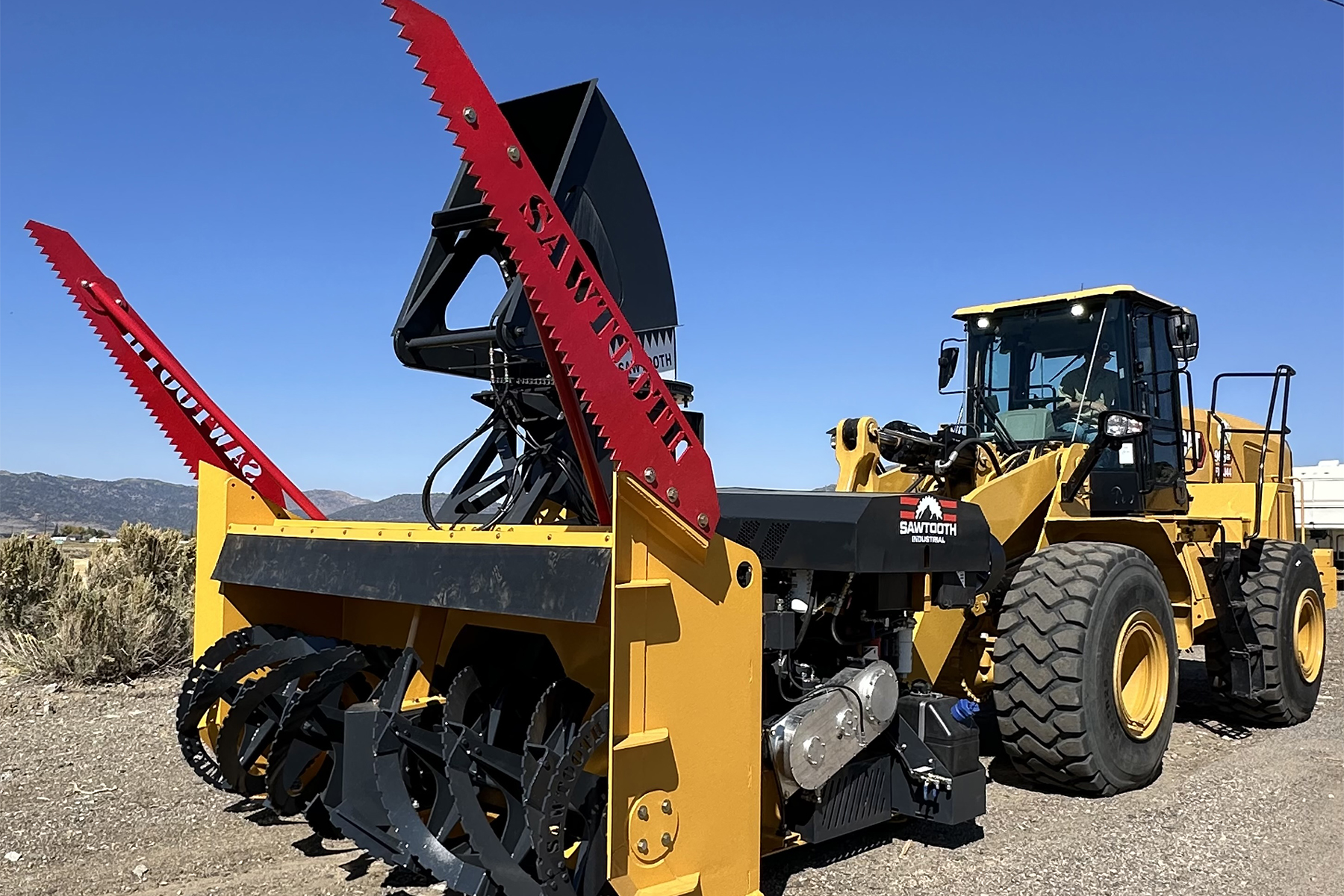

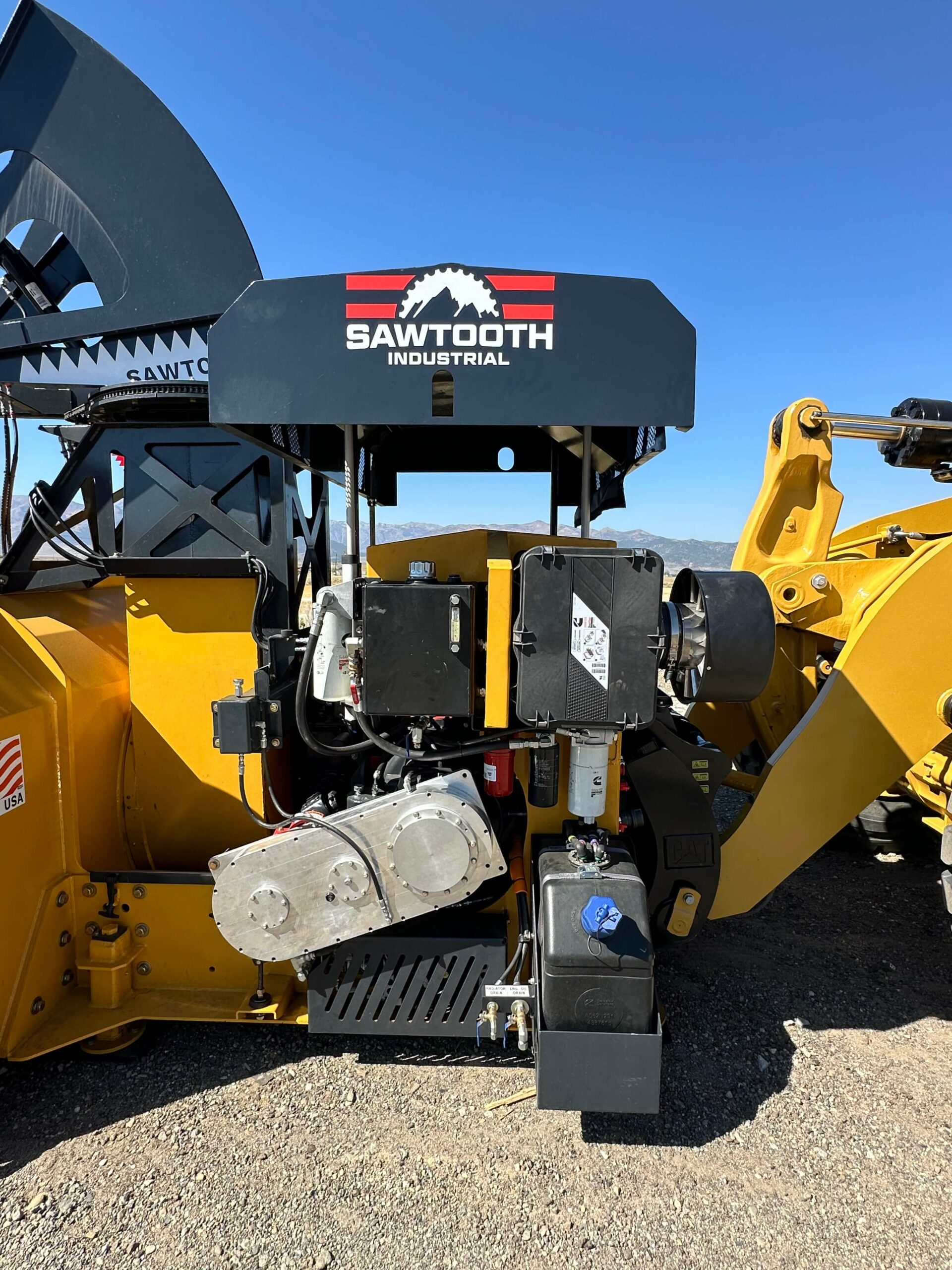

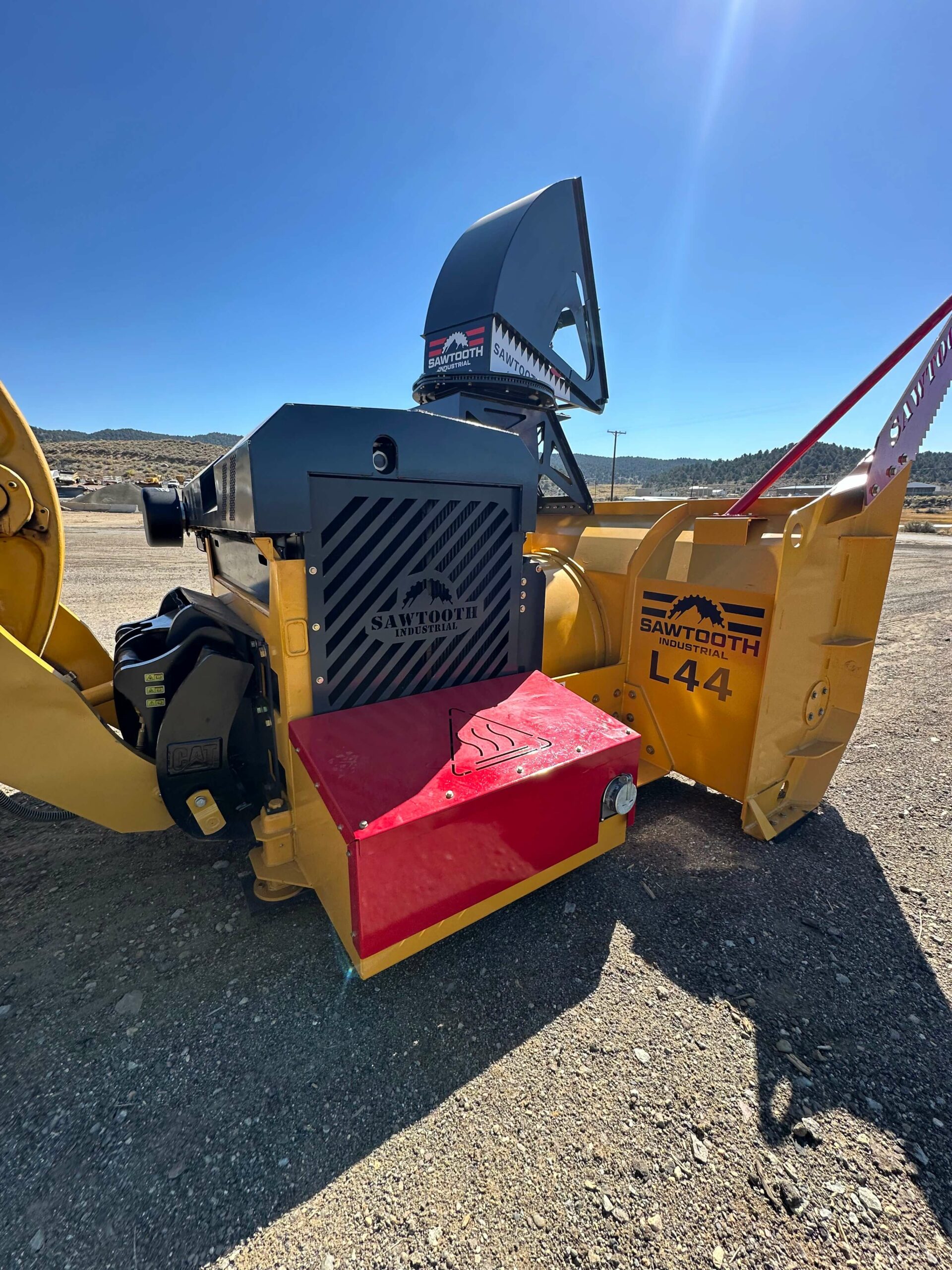

L44

SELF CONTAINED SNOW BLOWER

3,500 Tons per Hour
Download Brochure
  • Capacity: 3,500 tph
  • Casing Distance: 150 feet
  • Two-Stage Blower Design
  • Operating Conditions: -40F to110F
  • Recommended Loader Size: 3 Cubic Yard
  • Blower Head Working Height 56”
  • Spot Chute Working Height: 134”
  • Total Weight 16,500 lbs.
  • Cutting Width: 116” or 132”
  • Transport Height with Chute Folded: 80”
  • Bolted and Welded Construction
  • Steel Rated for Maximum Usage

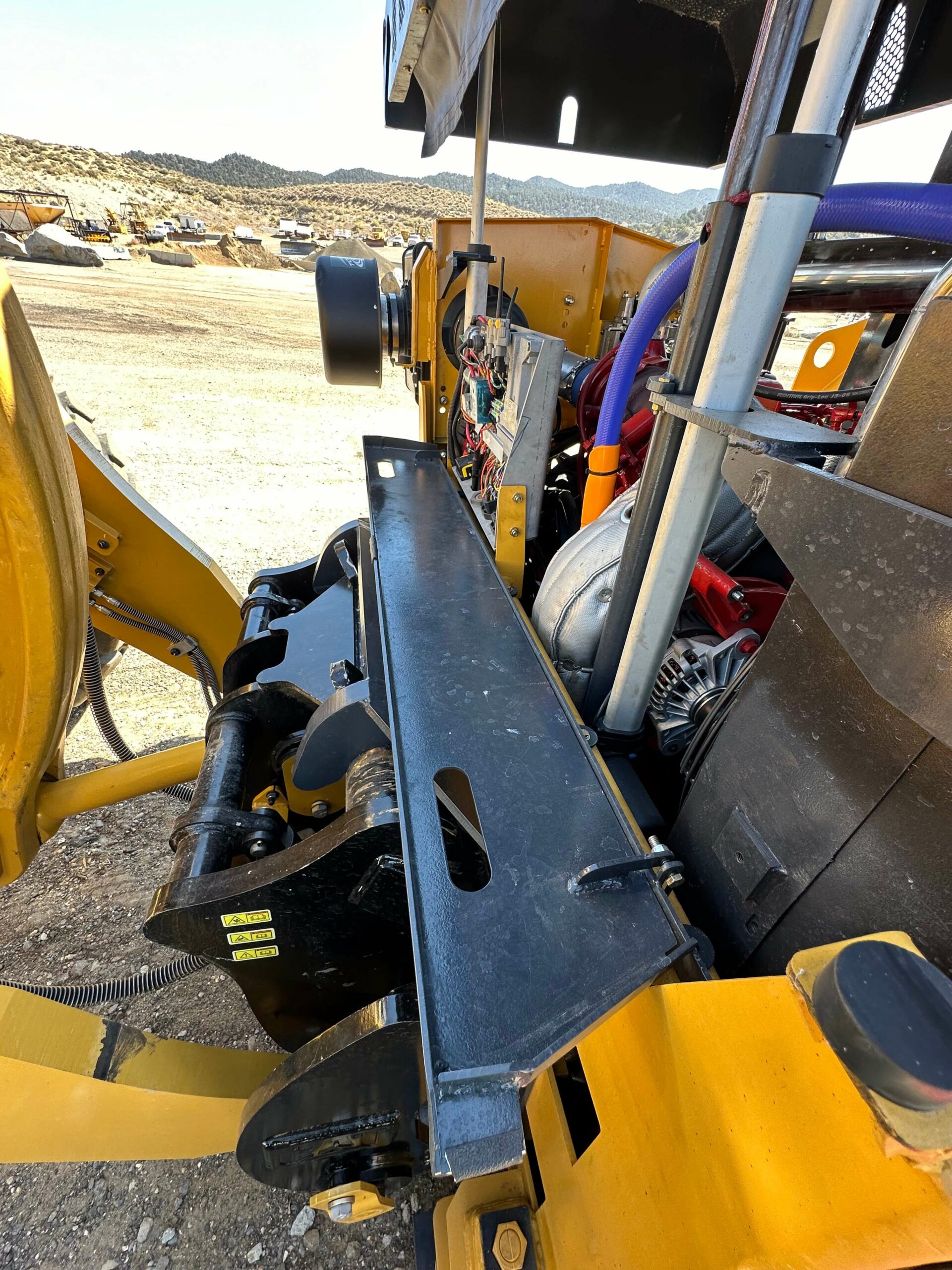

  • Quick Coupler to MatchLoader
  • Frame Designed to Withstand Loads Induced by the Loader
  • Split Frame for Maintenace
  • One-Year Limited Warranty
  • Warranty Literature to be Included w/ Operator’s Manual
  • Diesel Engine Turbo Charged
  • Cummins Stage V L9 Performance Series
  • HP Rating: 430 HP @ 2200 RPM
  • Torque Rating: 1361 Lb-Ft
  • Heavy-Duty Alternator
  • Two Stage Dry-Type Air Cleaner w/ Pre-Cleaner
  • Air Restriction Vacuum Gauge
  • Heavy Duty Cooling System
  • Electronic Controlled Injection System
  • One Aftertreatment Canister
  • Low Oil and High Coolant TempShutdown System
  • In-Line Heated Fuel/Water Separator w/ Replaceable Element
  • Fuel and Oil Filters
  • Fuel, Oil and Coolant Reservoirs Include Remote Drains and Easy Access Fills
  • Heavy Duty Cooling System
  • Permanent Type Antifreeze Rated -40F to 110F
  • Radiator and Charge Air Cooler System w/ Galvanized Mesh
  • Radiator Clamps Constant Torque Design
  • Pusher Fan to Reduce Snow Buildup on Radiator
  • Telescopic Truck Loading Chute
  • 250-Degree Rotation
  • Top Adjustable Flapper
  • Side Removable Panels for Cleanout
  • Spot Chute Folds Over to Assist in Unclogging as Well as Transportation

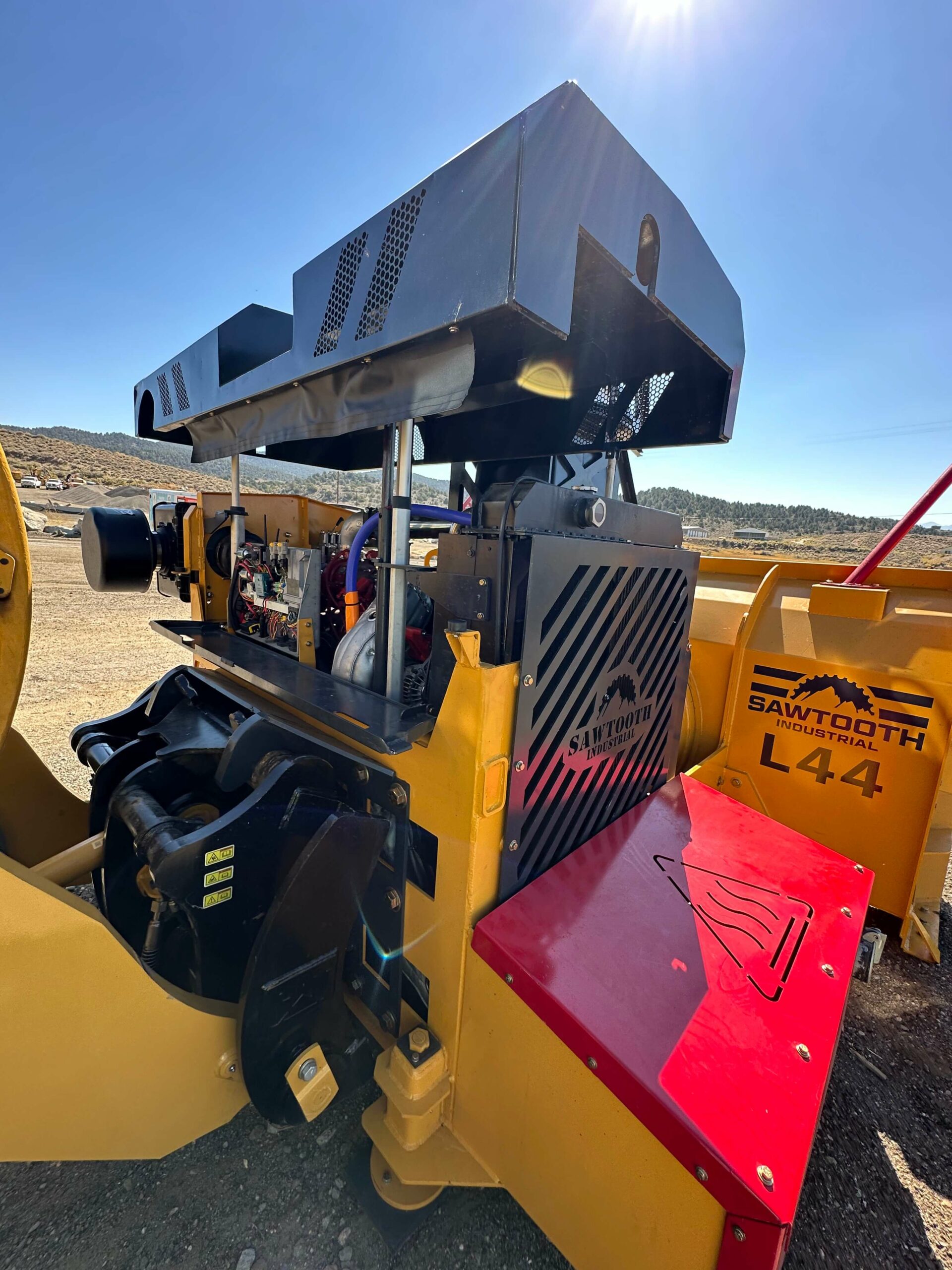

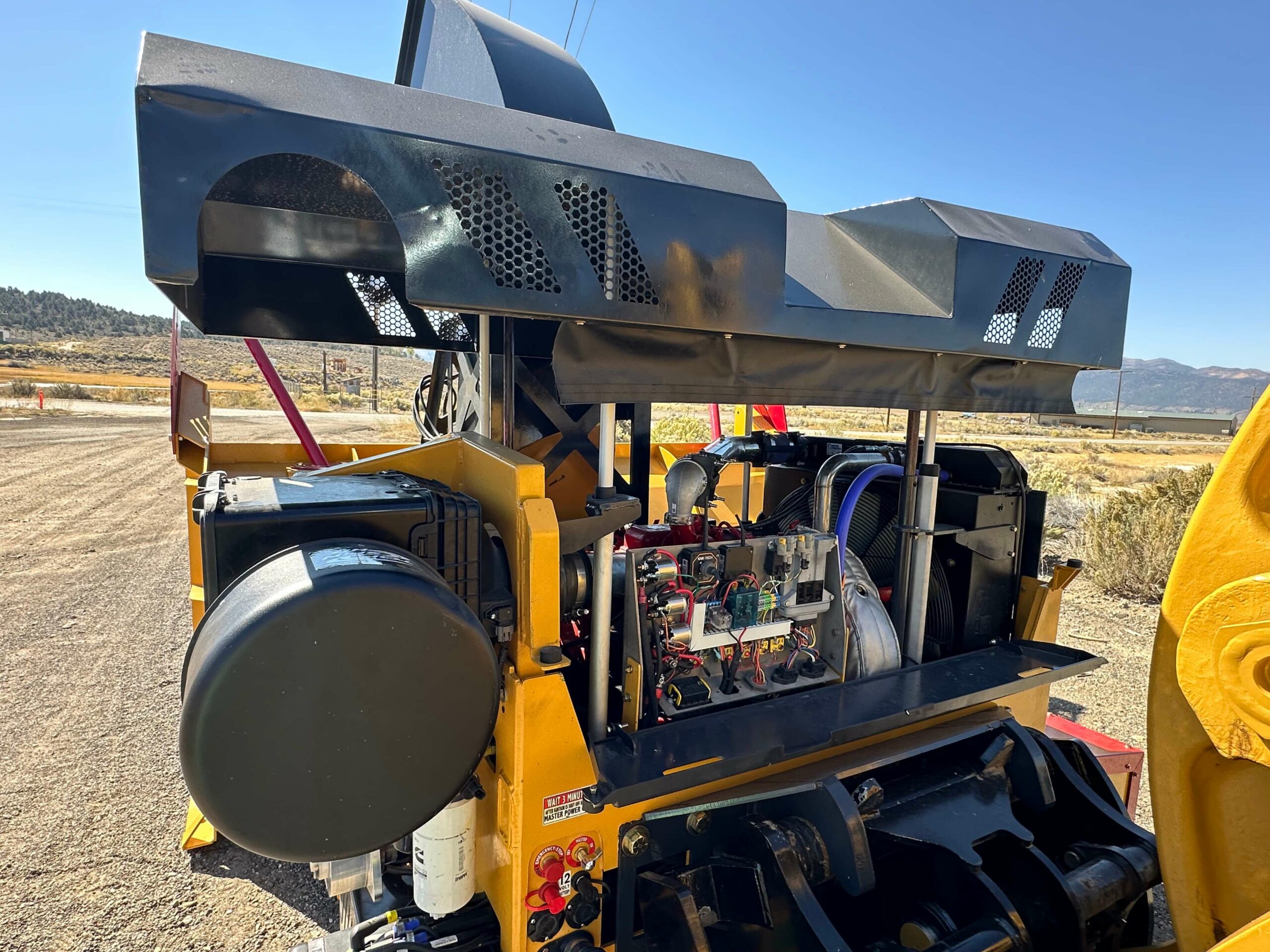

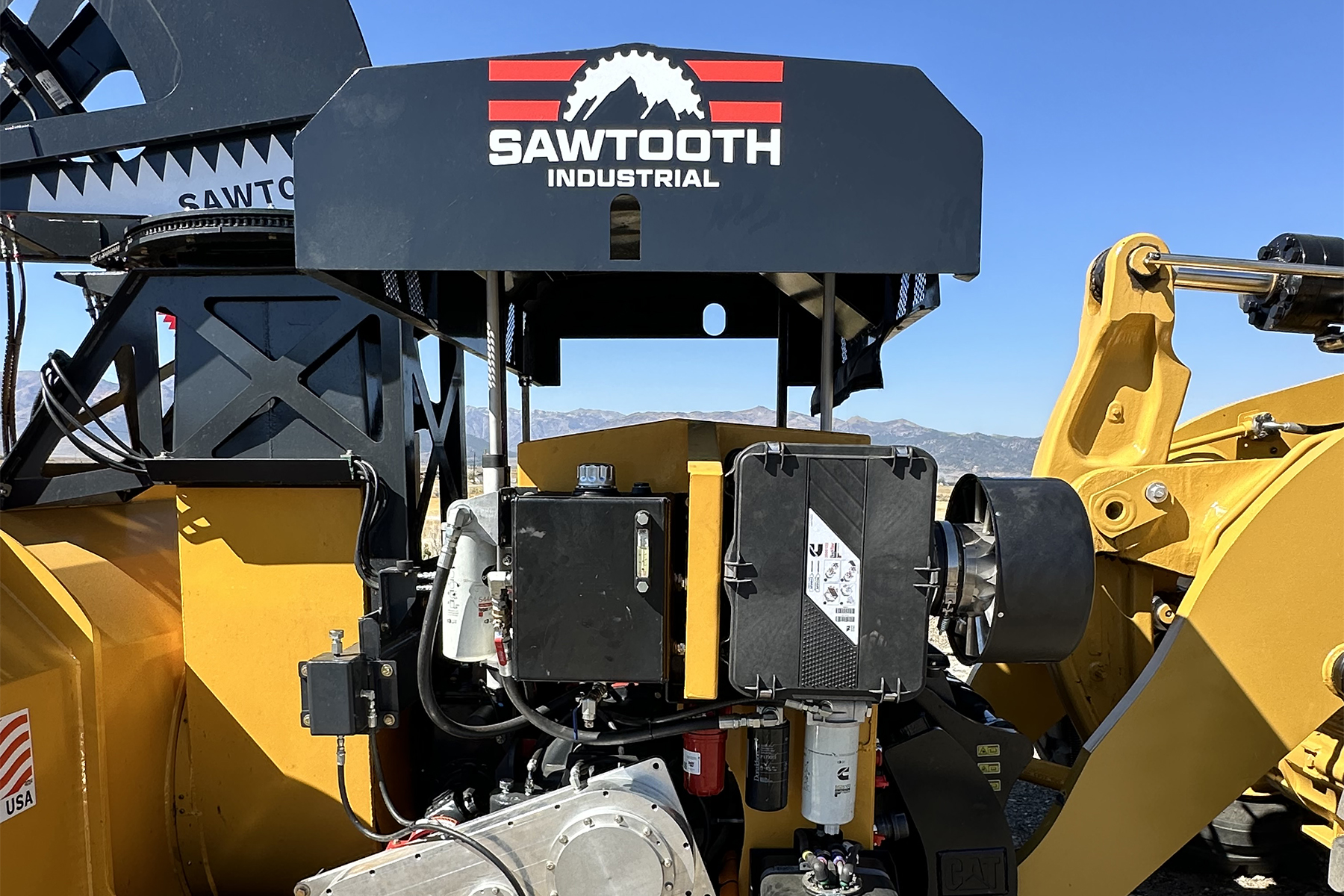

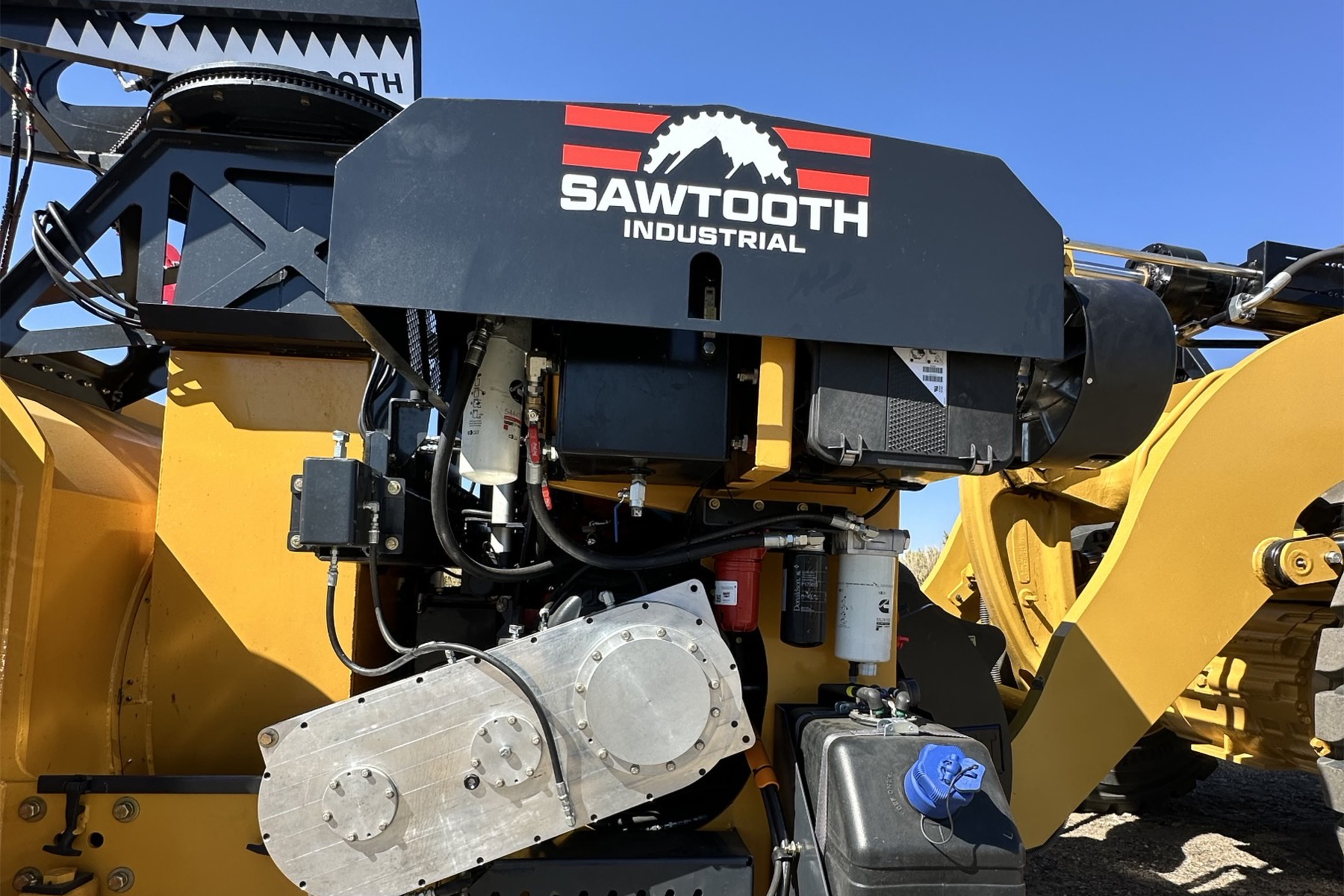

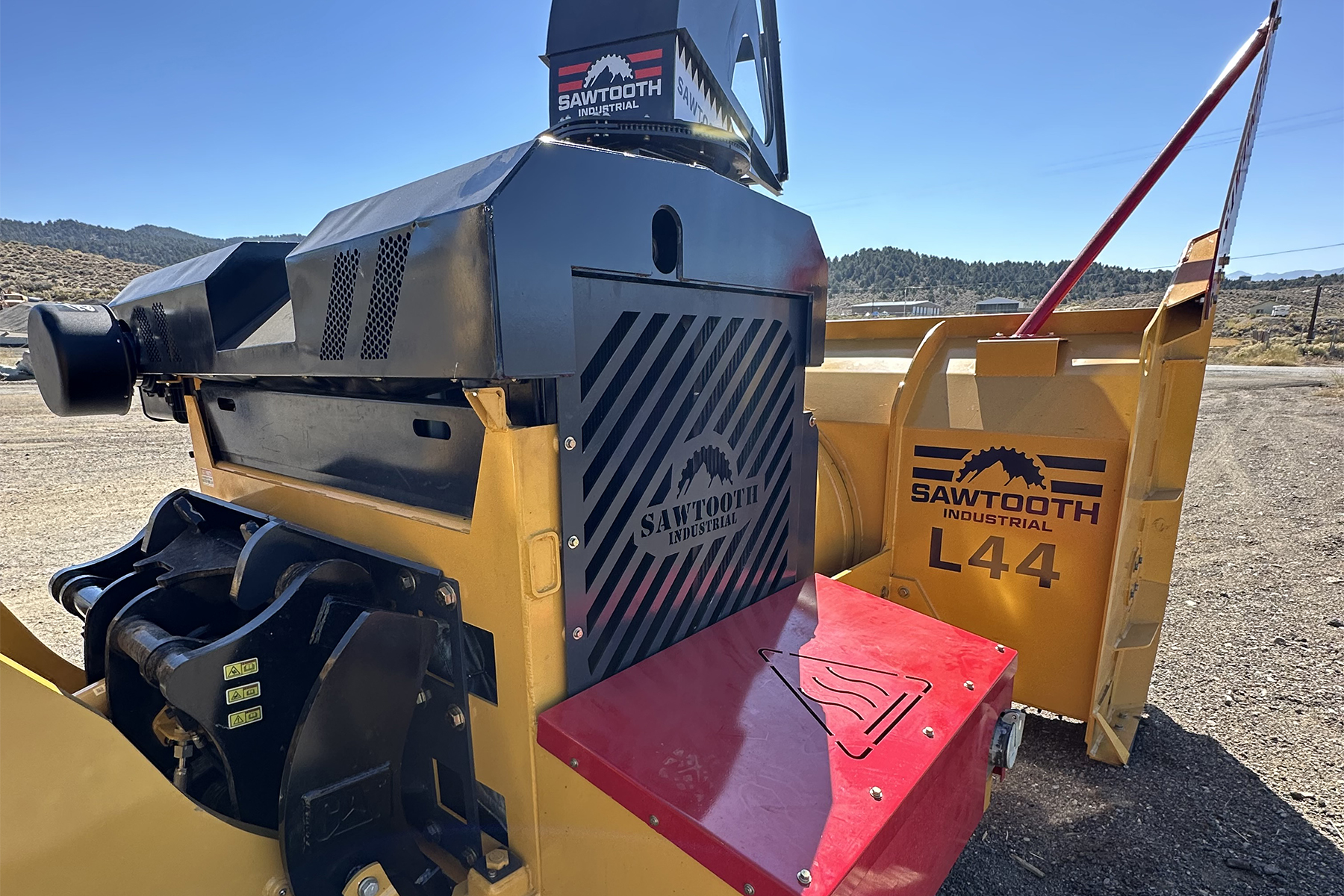

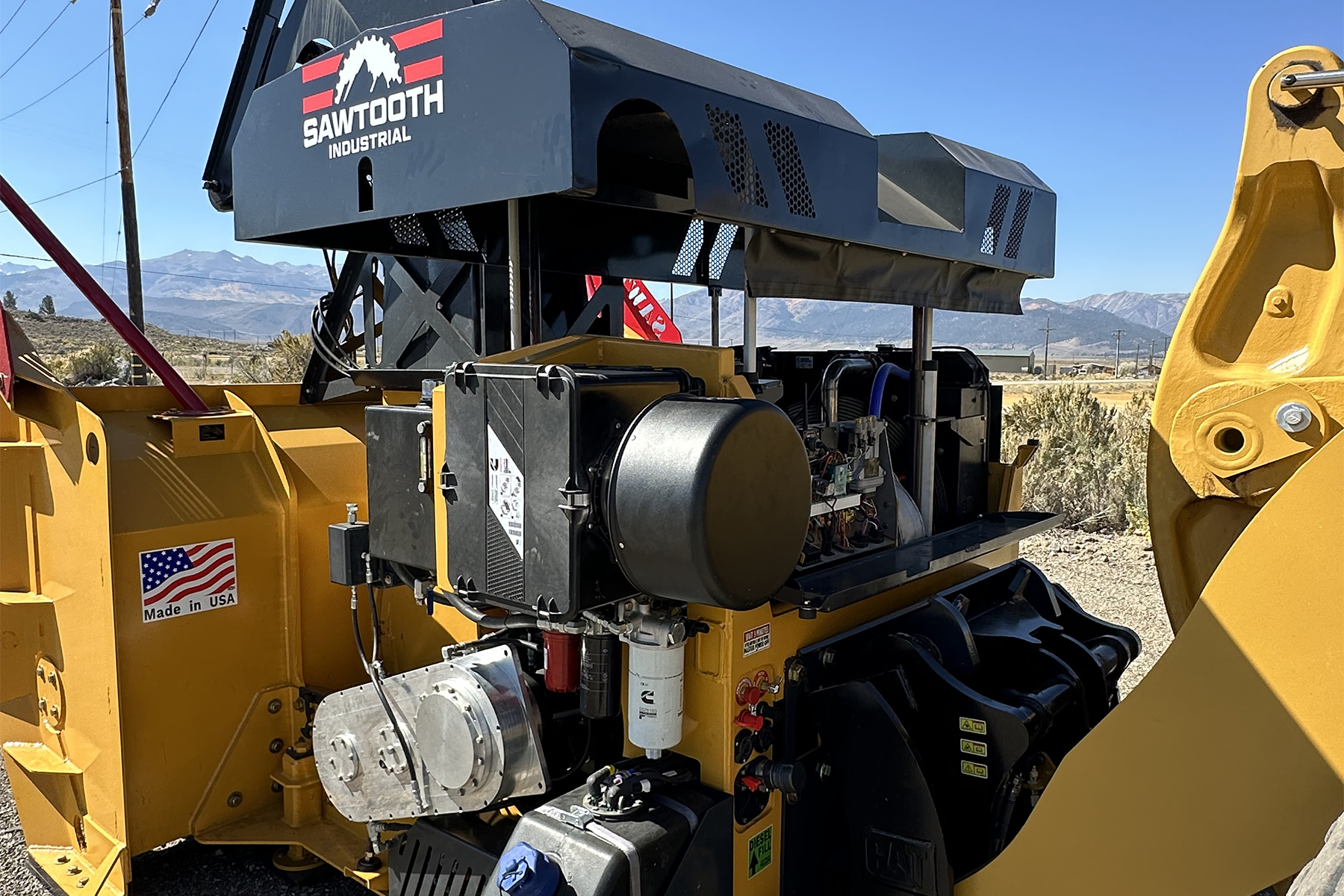

  • Tilting Engine Enclosure for Full Access to Compartment
  • Protective Screen Over Radiator
  • Completely Water Sealed
  • Rear Panel for Quick Electrical Panel Access
  • Gas Struts to Hold Compartment Open
  • Gas Strut Assist When Opening
  • 120 Gallon, 8-Hour Operation
  • Under-Body Fuel Drain
  • Under-Body Protective Guard
  • Fuel Tank Includes Louvers
  • Fuel System Includes Primary Fuel Filter and Secondary Fuel/Water Separator
  • Fuel Tank Breather
  • Heavy-Duty Hydraulic Valving w/Insulated Wiring Connections
  • All Functions Controlled Through One Valve Manifold
  • Auxiliary Gear Pump for Functions
  • Valving controlled On-Demand
  • 11-Micron Return Filter
  • 10-Gallon Hydraulic Tank w/Breather, Sight Glass, Remote Drain w/ Ball Valve, Suction Strainer, Chained Cap, & Filler Neck Strainer
  • 12VDC or 24VDC

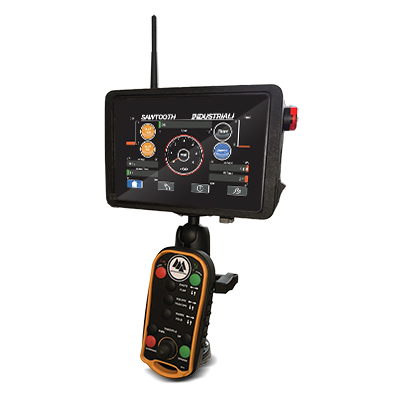

  • STFused Fully Wireless System
  • Handheld Remote for All Functions

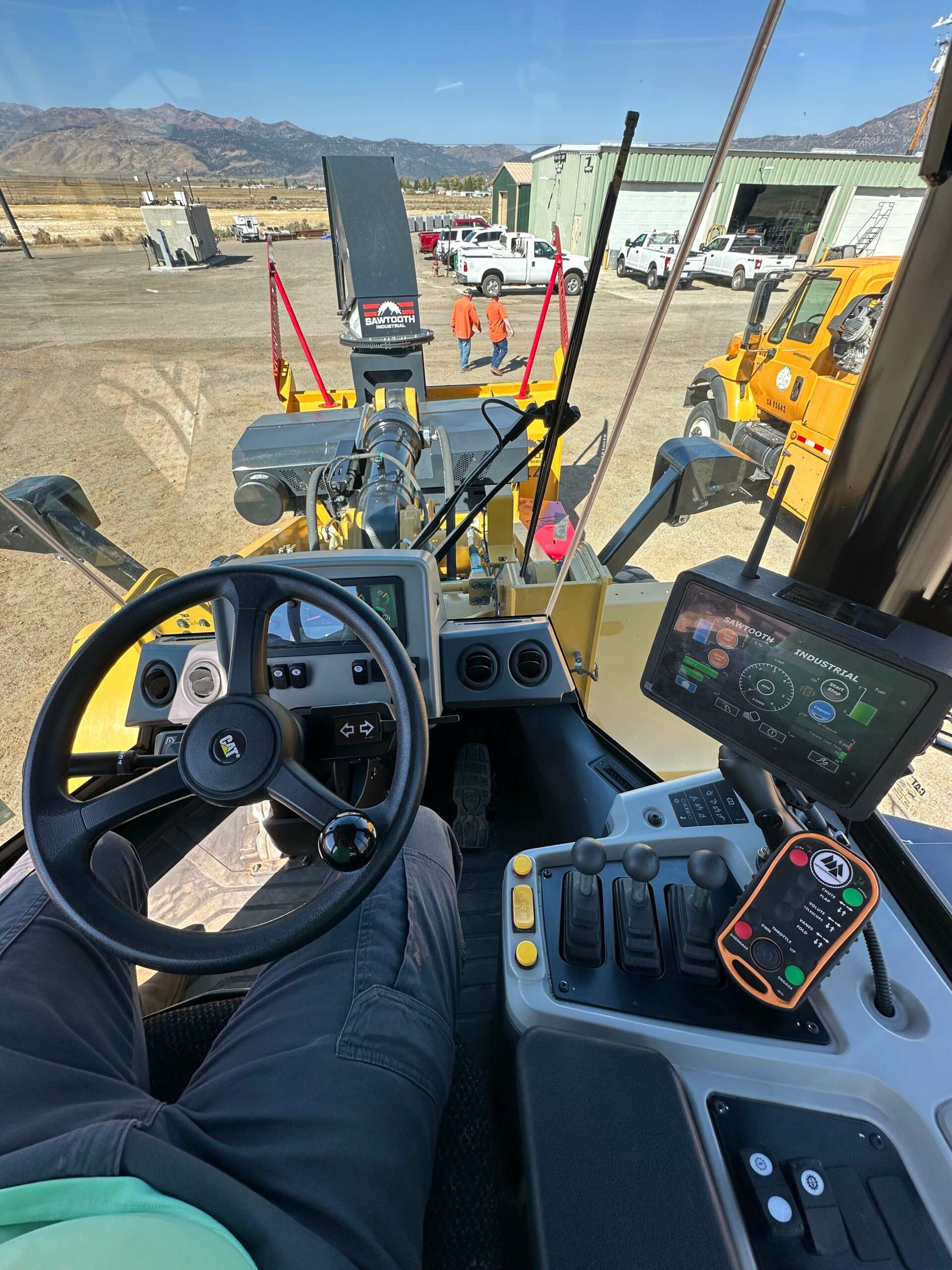

  • 7” LCD Screen In-Cab
  • 25’ Backup Hardwire
  • Wiring Color-Coded
  • Wiring Sealed & All Connections Water Proof
  • Screen Includes Digital Readouts for Tachometer, Hour Meter, Volt Meter, Engine Coolant, Oil Pressure, Fuel Level, and DEF Level
  • Audible and Visual Alarms for All Engine and Sawtooth Faults
  • Full Diagnostic/Code Center for Engine and Sawtooth Faults w/ Auto Resetting Feature When Code Is Cleared

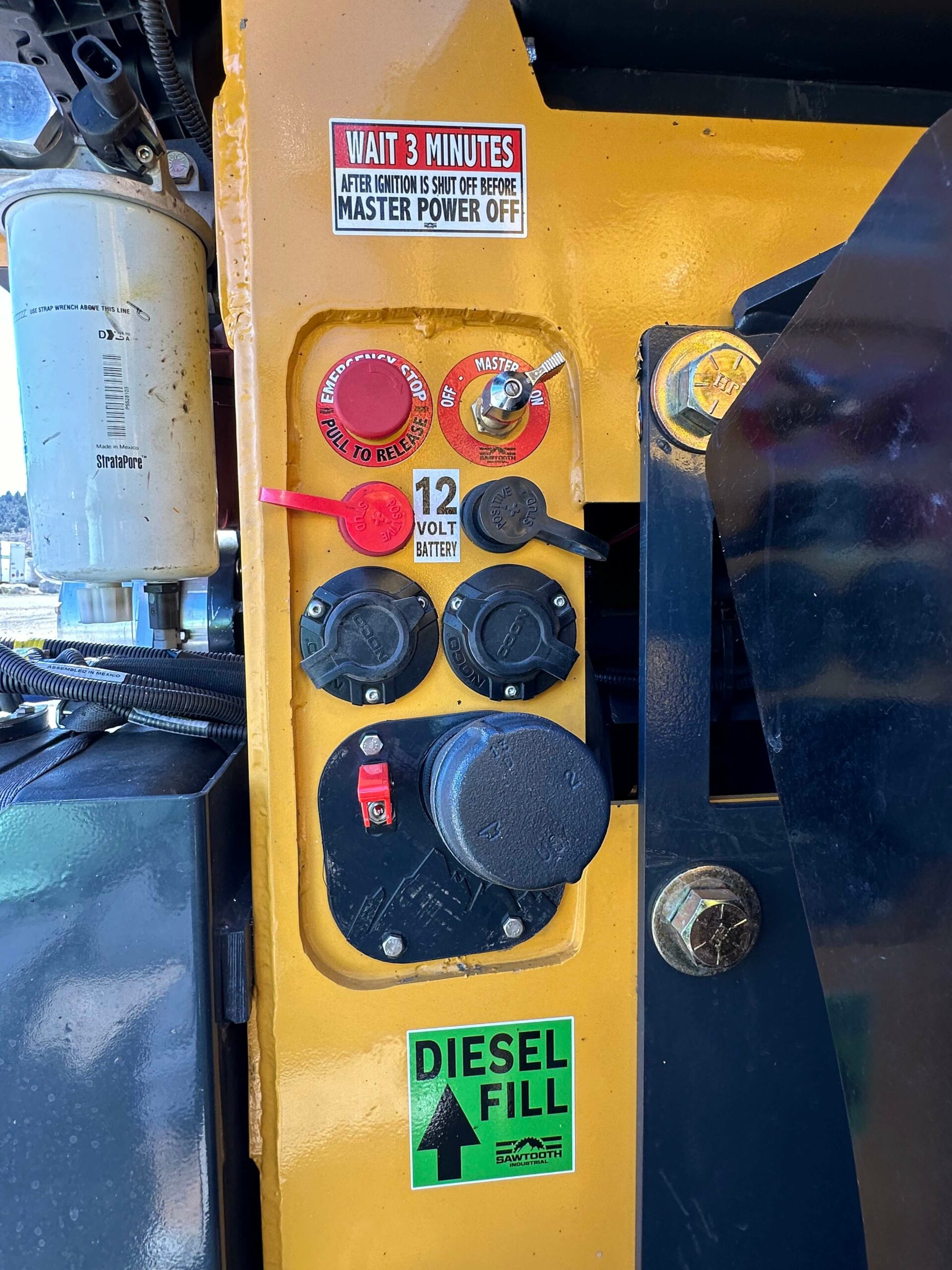

  • Master Emergency Shut Down
  • Master Electrical Disconnect
  • Automatic Clutch Protection
  • Two 1000 CCA Maintenance-Free Batteries
  • ISO-Style External Jump-Start Connectors
  • 110V Outlet Plug-Ins for All Charging/Heating Elements
  • Optional Lighting Package: Two Blower Head Stand-Mounted Forward-FacingLEDs, One LED Mounted on Spot Chute, Two LEDs Mounted on Engine Compartment, One LED for Master Shear Assembly, Engine Compartment LED Lighting
  • Optional Cold Weather Aid Package: Engine Oil Pan Heater, Engine Block Heater, Battery Blanket, Battery Trickle Charger, Hydraulic Heater, Diesel Heater
  • Mechanical Drive w/ Self-Adjusting Automotive Clutch
  • Eaton Self-Adjusting Automotive Type Clutch
  • Side Gear Drive. NO Belts or Chain Drive
  • Right Angle Gearbox for Fan Drive
  • Center Drive Gearbox for Ribbon Drive
  • All Gearboxes w/ Easy-Access Drain and Fill. All Gearboxes Utilizing 80W-90 Gear Oil
  • Shear Pin Assemblies Easy to Access and Replace

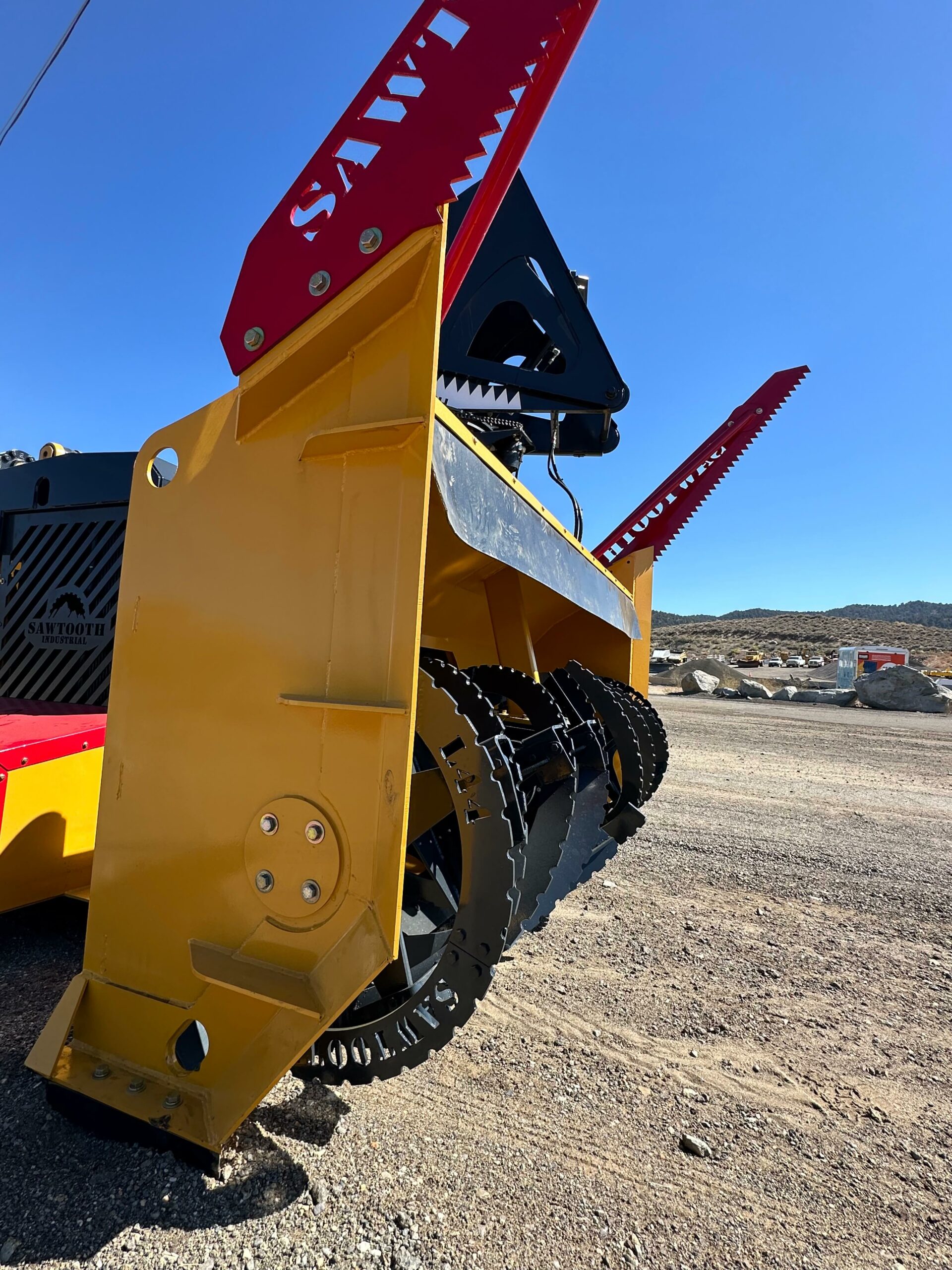

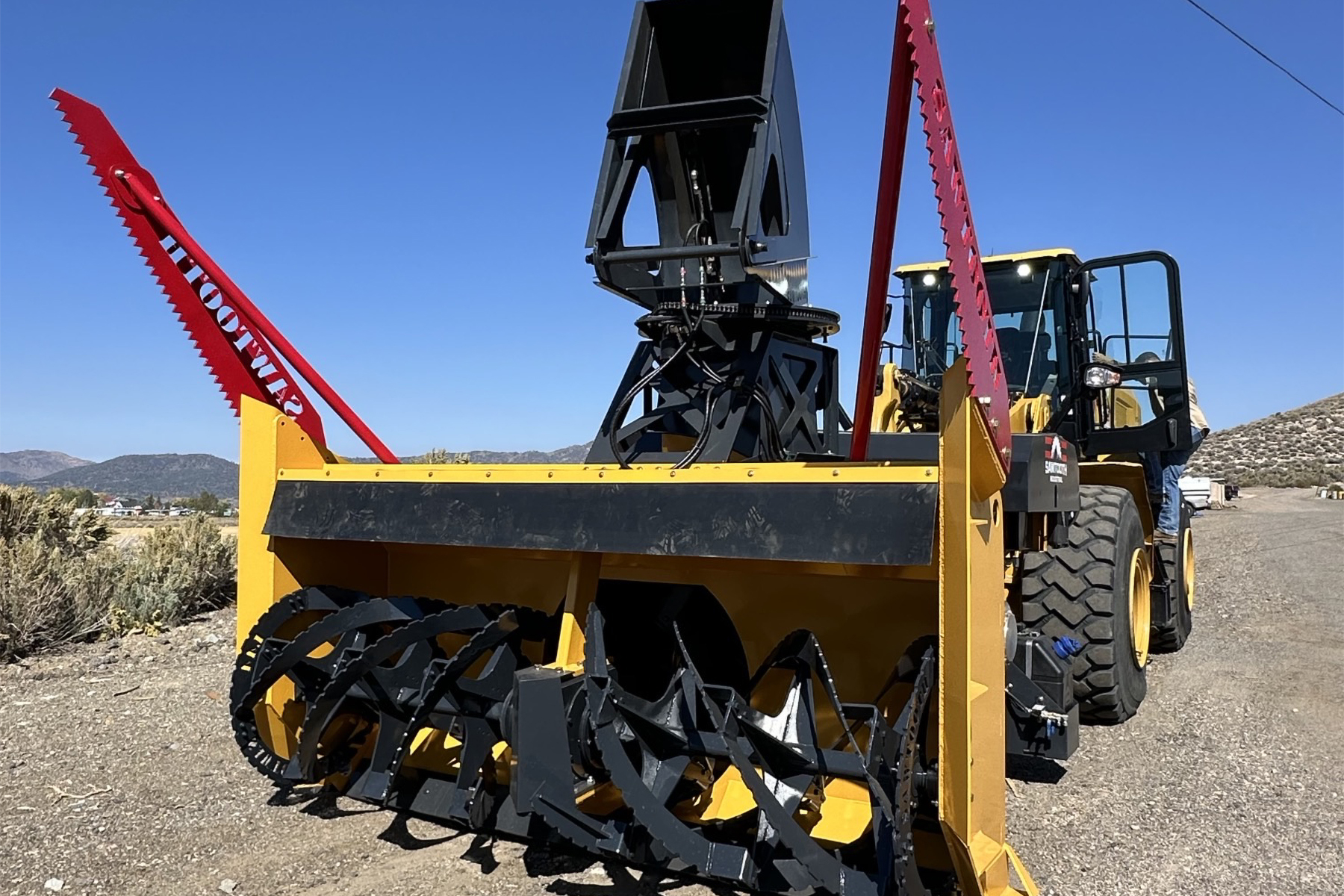

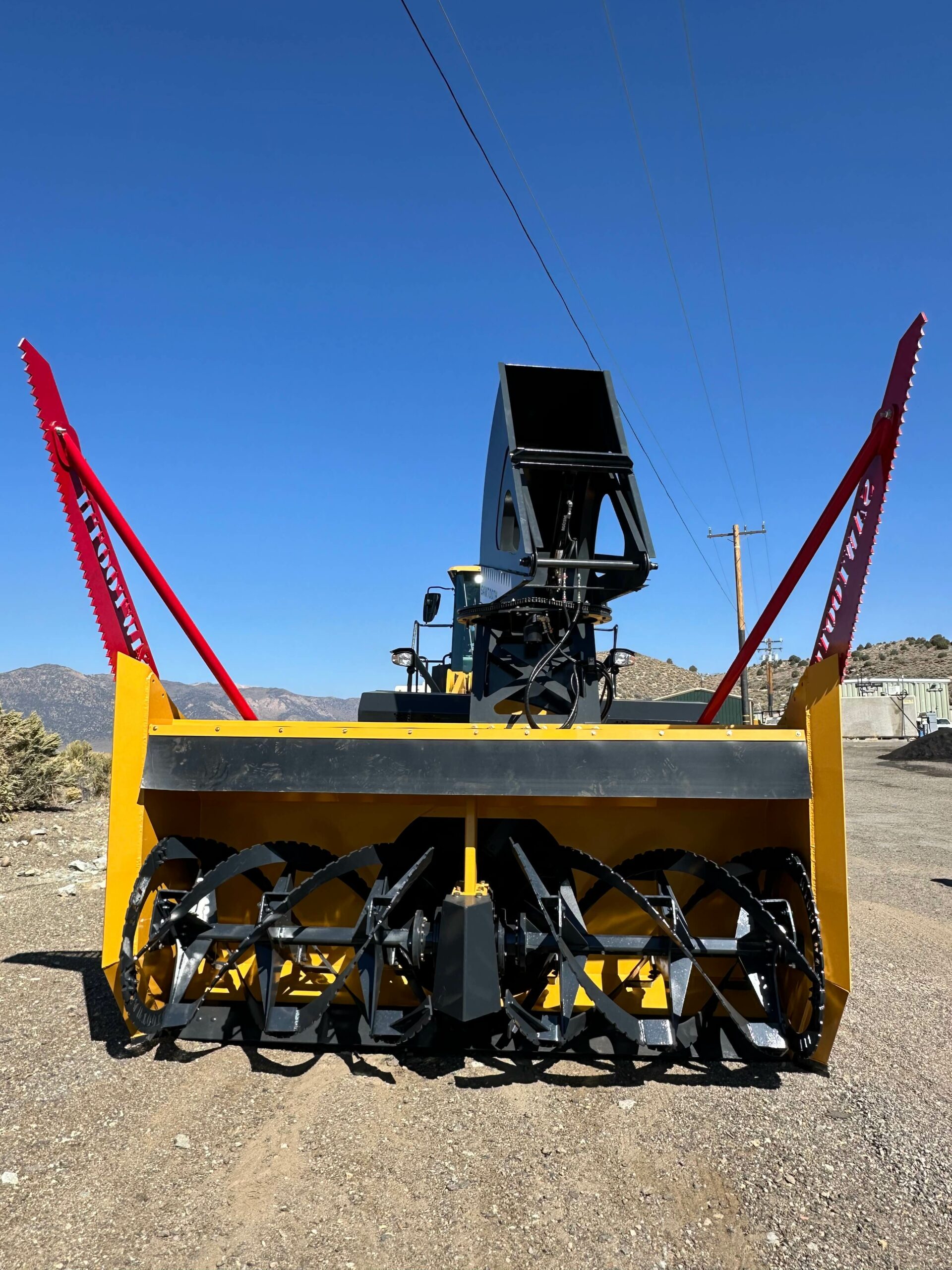

  • Two-Stage Design
  • First Stage: Ribbon, 36” Diameter, Two-Piece, Serrated, Bolted to Heavy-Duty Reels, Shear Pin Protected
  • Second Stage: Impeller, 44” Diameter, 20” Depth, 3/8” Casing, 5 Blades of Abrasion-Resistant Steel, Blades Individually Replaceable, Full Fan Opening
  • Discharge: Flat Cast Right w/ 135-Degree Full Rotation
  • Rubber Deflector Bolted to Top of Blower Head Frame
  • Housing Rotation by Hydraulic Cylinder
  • Optional AR500 Liners for Plow Back and Impeller
  • Replaceable Abrasion Resistant Scraper Blade, Full Width, One Piece
  • Adjustable Replaceable Swivel Skid Shoes
  • All Surfaces Prepped Before Paint
  • Primer: Two Coats of Two-Part Epoxy Primer
  • Top Coat: Two-Part Polyurethane Paint
  • Paint: Custom Paint Options to Match Customer Preference
  • Optional Powder Coat
  • One Complete Set of Operators Manuals, Maintenance Manuals, and Parts Manuals
  • Manuals Include Electrical, Hydraulic Schematics & Lubrication Charts.
